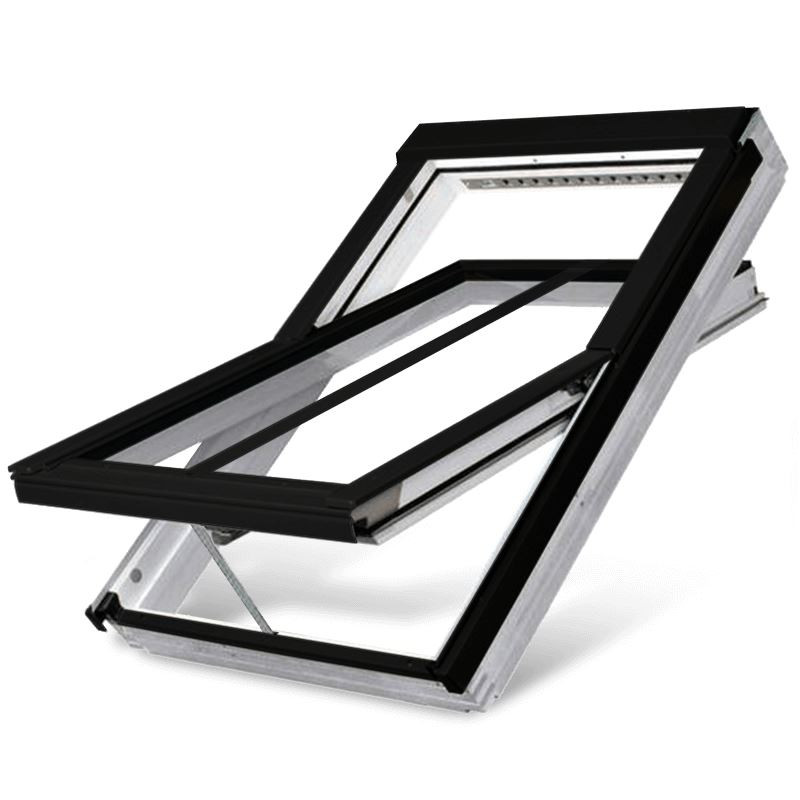

PTP-V/C Roof Window Specifications Glazing and U-values - for details please see Glazing Options below Conservation Style Window with a Central Mullion Bar on the External Face of the Glazing. V35 slide adjustable background ventilation. TopSafe security and safety offering reinforced hinge and keep together with a steel slat to the lower part of the sash to achieve at least class III safety as per EN13049. External aluminium colour reference RAL9005. Internal frame white multi-chamber PVC-U finish (galvanised steel profiles within chamber to strengthen for fixings.)Bottom placed handle with 2 micro opening positions. Glass construction 4H-Tg15Ar-33.2mm overall thickness of 26mm with an anti-burglary class of laminate 33.2 (class p2a). External tempered glass, Warm TGI Spacer filled with inert Argon gas. Acoustic rating 33Db (-1.-4). Can be used on roofs with pitches between 15-90º. 3-5 working days
10 Years
- External Colour:
- Black
- Handle Type:
- Bottom Handle
- Interior Colour:
- White UPVC
- Material:
- UPVC/Aluminum
- Model:
- Conservation Centre-Pivot White UPVC
- Product Type:
- Roof Window
- Roof Type:
- Pitched Roof
- U-Value:
- 1.3
- Warranty:
- 10 Years
